420 Electric Shift Problem Code List

There are 2 types of blink patterns to determine the code. A long blink and a short blink. Long blinks are x10 and the shorts are the number of actual blinks.

Ex. 2 long blinks and 4 short blinks gives you a code 24 (2x10+4=24).





I thought I posted this already but must not of..so here it is.



2013 MUV 700----2011TRX500FPM----2009TRX420FPA----2009TRX420FA----2007 TRX420FM----2006 TRX400FA----1995TRX300FW----1988TRX350D----1988TRX300---1974 CB750 Amen Savior Chopper----!974 ST90
toodeep is offline
Sponsored Links
Advertisement

post #2 of 8 (permalink) Old 09-11-2012, 09:04 PM Thread Starter
Administrator

toodeep's Avatar

Join Date: Aug 2007
Location: south dakota
Posts: 13,029
Garage
I had a machine come in today with multiple problems. Code 24 was one of them and it turned out to be a dirty shift motor (brush was stuck). I had time and took some pics.

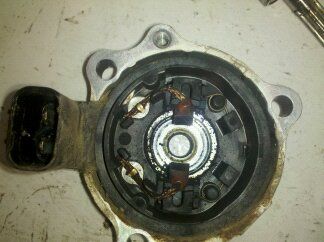

Remove the shift motor from the engine and then remove the 2 allen bolts, proceed to take the shift motor apart.








Inspect everything and if all looks good proceed to clean it up for reassembly.




It's easiest to clamp the brushes to hold them open while installing the armature. The springs will fight you in the small space.




Install the armature and release your clamps. You will want to lightly clamp the teeth part of the armature in a vise or use a pair of vise grips or the magnet will pull it out and you have to start over again.




I use a little dielectric grease around the rubber washer and install the housing. Tighten the allen bolts and your ready to go.




2013 MUV 700----2011TRX500FPM----2009TRX420FPA----2009TRX420FA----2007 TRX420FM----2006 TRX400FA----1995TRX300FW----1988TRX350D----1988TRX300---1974 CB750 Amen Savior Chopper----!974 ST90
toodeep is offline
post #3 of 8 (permalink) Old 09-14-2012, 08:55 PM
Honda Rider

Join Date: Sep 2012
Location: Chicago
Posts: 8
Send a message via Skype™ to joebemby
that was fun

took apart the motor, cleaned it, pluged it in and hit the shift button, it worked, put all gears back and it shifted into 3rd and then 3 or --- was blinking 3 times, can't get trans to hand shift out of third to N.
joe
joebemby is offline

post #4 of 8 (permalink) Old 09-14-2012, 09:39 PM
Honda Rider

Join Date: Sep 2012
Location: Chicago
Posts: 8
Send a message via Skype™ to joebemby
also just noticed the 4wheel switch doesn;'t work now. if i didn't have any bad luck what would I have
joebemby is offline
post #5 of 8 (permalink) Old 09-14-2012, 11:11 PM
Honda Rider

Join Date: Sep 2012
Location: Chicago
Posts: 8
Send a message via Skype™ to joebemby
just pulled motor out and it runs fine with 12v.
joebemby is offline
post #6 of 8 (permalink) Old 09-15-2012, 12:22 AM Thread Starter
Administrator

toodeep's Avatar

Join Date: Aug 2007
Location: south dakota
Posts: 13,029
Garage
How did the shift motor look on the inside? The 4x4 could be flashing be cause of a low voltage signal, which could be caused be a faulty shift motor if it was bad enough. Have you shifted through the gears (all of them) manually just to make sure it isn't another gremlin?



2013 MUV 700----2011TRX500FPM----2009TRX420FPA----2009TRX420FA----2007 TRX420FM----2006 TRX400FA----1995TRX300FW----1988TRX350D----1988TRX300---1974 CB750 Amen Savior Chopper----!974 ST90
toodeep is offline
post #7 of 8 (permalink) Old 09-26-2012, 01:17 PM
Honda Rider

Join Date: Sep 2012
Posts: 10
I had trouble with it blinking codes a while ago....turned out to be one of the brushes in the starter wash stuck. Also had trouble after that off and on, mostly on wet days. I waited until all was working good and sprayed all of the electral connections down with fluid film. Never had another problem with shifting after that.
bearbait is offline
post #8 of 8 (permalink) Old 12-14-2015, 04:54 PM
Honda Rider

Join Date: Dec 2015
Posts: 13
Quote:
Originally Posted by toodeep View Post
There are 2 types of blink patterns to determine the code. A long blink and a short blink. Long blinks are x10 and the shorts are the number of actual blinks.

Ex. 2 long blinks and 4 short blinks gives you a code 24 (2x10+4=24).





I thought I posted this already but must not of..so here it is.


I have recently purchased an Honda ES bolt on shifter from ACE's in Meridian, Ms. We have installed it on our ATV ourselves and has made all the difference in the world. It has fixed all our problems. You can contact them at [email protected] or call Tyler @ 601-616-3299.
Also i purchased for $50.00 with free shipping. Hope you find your answers. Crystal
